E-Guard

$445.00

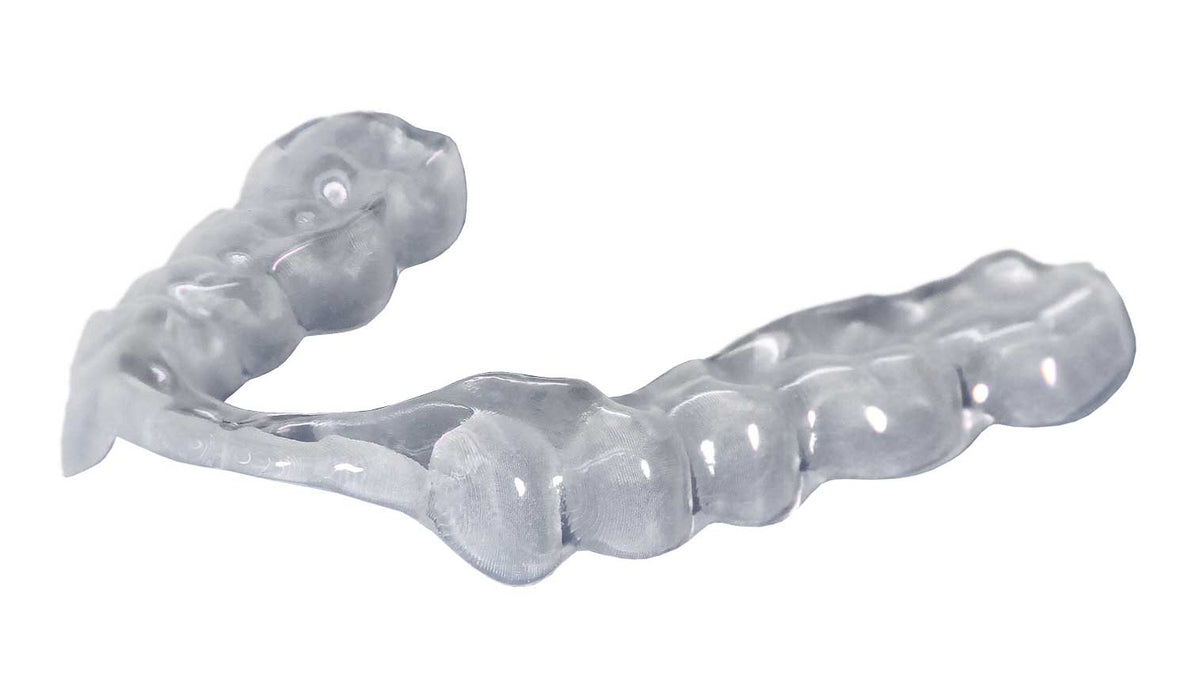

EnvisionTEC’s E-Guard 3D printing material is a biocompatible, crystal-clear material for the production of accurate orthodontic splints and retainers.

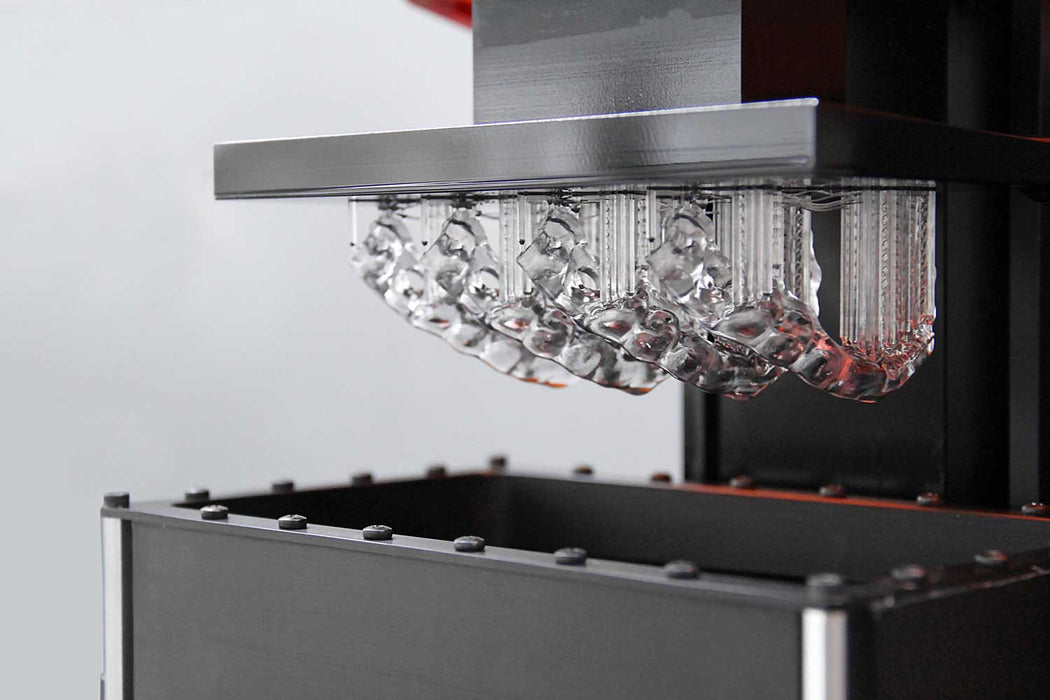

The results produced by combining E-Guard with EnvisionTEC technology are superior to traditional methods of manufacturing bite guards and night guards. It is a clear material, allowing for maximum visibility. High resolution 3D printing allows for precise fit.

Finally, the cost of high quality splints and retainers can be dramatically lower when produced using E-Guard on an EnvisionTEC 3D printer in comparison to previous machining methods, making EnvisionTEC the clear choice for any digital dental or orthodontic laboratory or practice.

See a short video on E-Guard as below.

PHYSICAL PROPERTIES

  • Flexural Strength - 79 – 85 MPa
  • Flexural Modulus - 2050 – 2130 MPa
  • Water Sorption - 30 – 32 µm/mm3
  • Water Solubility - 0.5 µm/mm3
  • Viscosity @ 30°C - 230 – 330 cP
  • Cytotoxicity - Passed
  • Irritation and Skin Sensitization - Passed

RECOMMENDED MACHINES

  • Micro Plus cDLM
  • Vida HD cDLM
  • Vida cDLM
  • Perfactory P4K Series
  • Envision One cDLM Dental
  • D4K Pro Dental
  • Micro Plus Advantage
  • Micro Plus XL
  • Vida, Vida HD
  • Vida UHD cDLM

APPLICATIONS

  • Orthodontic
