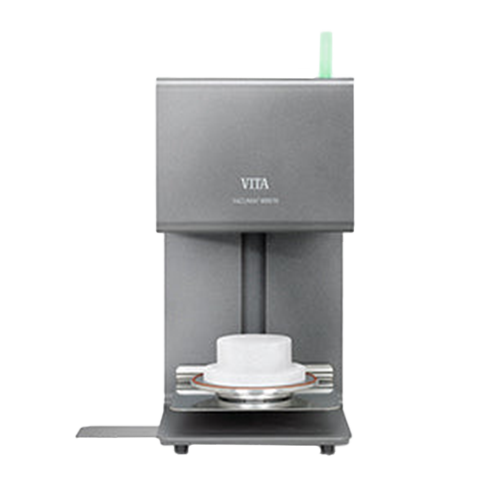

VITA VACUMAT® 6000 M Bundle (Ceramic Furnace)


Premium ceramic furnace with surprising details and impressive reliability

The VITA VACUMAT 6000 M is a fully-automatic, microprocessor-controlled firing unit, ideal for all dental ceramic firing requirements. The furnace impresses with superb quality and esthetics, and offers outstanding firing results, user safety and convenience. Thanks to its optimum ergonomic design, the furnace only takes up a minimum amount of space. Two integrated cooling trays support safe storage of fired objects, while the captivating design, available either in one of six quality contemporary finishes, is a real eye-catcher for your work area.

  • A firing muffle with maximum durability ("Made in Germany") and reliable electronics for consistently excellent firing results
  • Automatic prevention of condensation in the firing chamber (VITA AntiCon)
  • Automatic temperature adjustment to +/-1 °C every time a program is started (VITA AutoAdjust)
  • An automatic cleaning function (VITA SpecialClean)

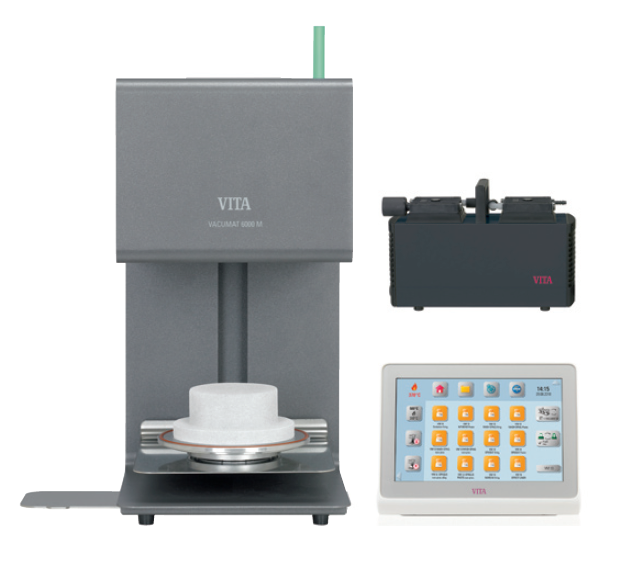

  • Operate up to four furnaces using just a single VITA vPad excellence control unit
  • Use the VITA MultiPump to supply up to four furnaces with just a single vacuum pump – a simply unique system
  • Reduce your energy bills by up to 70 % with VITA Energy Efficiency
  • integrated working instructions
  • Automatic service cycle monitoring
  • Intelligent menu navigation

All the firing information is displayed on the 10″ LED tablet display (vPad Excellence), which offers 500 customizable firing programs, separate user profiles, full furnace control and current status.

VITA VACUMAT® 6000 M Technical functions

  • Service and monitoring programs, e.g. automatic temperature adjustment before every start of the program, temperature and vacuum control, counter for operating hours of firing muffles
  • Power failure protection
  • Adjustable vacuum values, adjustable pre vacuum and main vacuum
  • Lift monitor, adjustable lift speed
  • Freely adjustable lift positions for pre-drying and slow cooling
  • Fast cooling to standby temperature


Technical data (Vacumat 6000 M)


Width 230 mm
Depth 330 mm
Height 444 mm
Weight 13 kg (painted)
Casing painted anthracite finish
Chamber diameter 90 mm
Chamber height 55 mm
Firing temperature max. 1200°C
Power supply 230 volt AC, 50 Hz or 100/110 volt AC, 50/60 Hz
Power consumption  max. 1.5 kW
Classification Protection class 1


Additional information and download

 *Individual furnace, vPad and accessories available upon request. Contact for more information.
