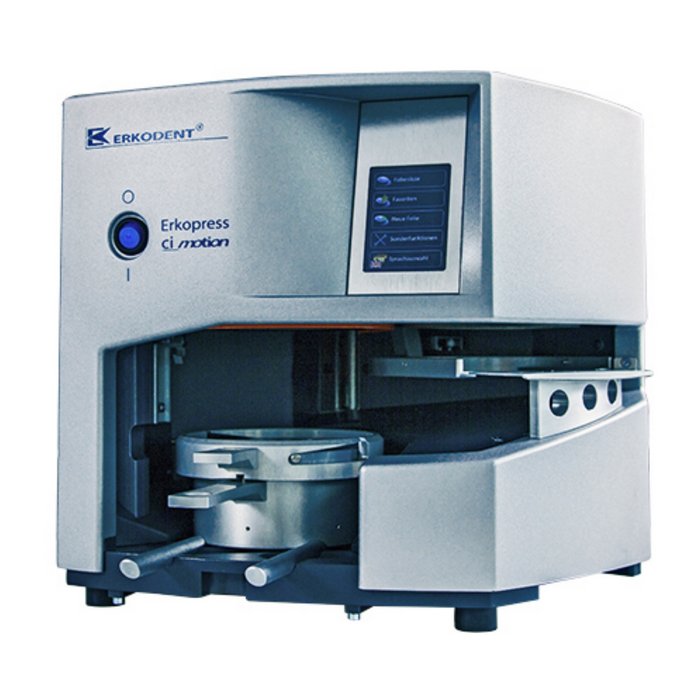

Erkopress ci Motion

$5,591.00

Pressure forming unit with automated thermoforming process
with self-sufficient, integrated production of compressed air. The Erkopress ci motion has a powerful, integrated compressor
with reserve compressed air. Thereby the unit is independent of a compressed air system that possibly has to be installed.



Technical Specification

  • H 32 / W 33 / D 43 cm
  • Weight 21.3 kg
  • Foil diameter 120 mm
  • Foil thickness 0 - 5.5 mm
  • ~220 - 240 (100, 110 - 120) Volt, 50 - 60 Hertz
  • Power: 440 watt
  • Noise level < 70 dB(A)
  • Working pressure 6 bar

Usage
  • Program the foil
  • Insert foil
  • Start the heating process
  • Place model
  • Everything else will be done by the device
  • The thermoforming process as well as the cooling time will run automatically.
  • Touchless temperature sensor to exactly determine the actual temperature (patented) of the thermoforming materials.
  • For uniform wall thicknesses the hot foil will be placed vertically onto the model.
  • The adaption is taking place without delay.
  • Outstanding workplace safety through automatic switch-off function.
  • Pinch protection during the automated thermoforming.
  • The medium-wave infrared heating without preheating time, heats up the material not only on the surface but also indepth.
  • Easily accessible model during heating period.
  • Acoustic and visual signal (suitable for people with impaired hearing).
  • Program-controlled function and process.
  • The program contains all Erkodent thermoforming materials and as a quick guide, supported by animations, it leads through the workflow and signalizes the necessary work steps.
  • Select the desired foil and thickness and start the process.
  • Frequently used foils, new foils and even modified factory settings can be saved as favorites.
