E-Model HS

$236.25

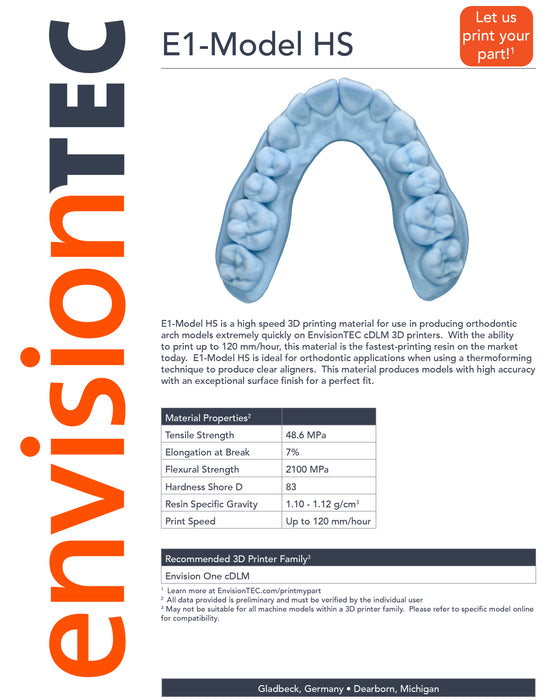

E-Model HS is a high speed 3D printing material for use in producing orthodontic arch models extremely quickly on EnvisionTEC cDLM 3D printers.  With the ability to print up to 120 mm/hour, this material is the fastest-printing resin on the market today.  E-Model HS is ideal for orthodontic applications when using a thermoforming technique to produce clear aligners.  This material produces models with high accuracy and an exceptional surface finish for a perfect fit.

PHYSICAL PROPERTIES

  • Tensile Strength
  • 48.6 MPa
  • Elongation at Break
  • 7%
  • Flexural Strength
  • 2100 MPa
  • Hardness Shore D
  • 83
  • Resin Specific Gravity
  • 1.10 – 1.12 g/cm3
  • Print Speed
  • Up to 120 mm/hour
RECOMMENDED MACHINES
Envision One cDLM Dental
APPLICATIONS
Orthodontic
