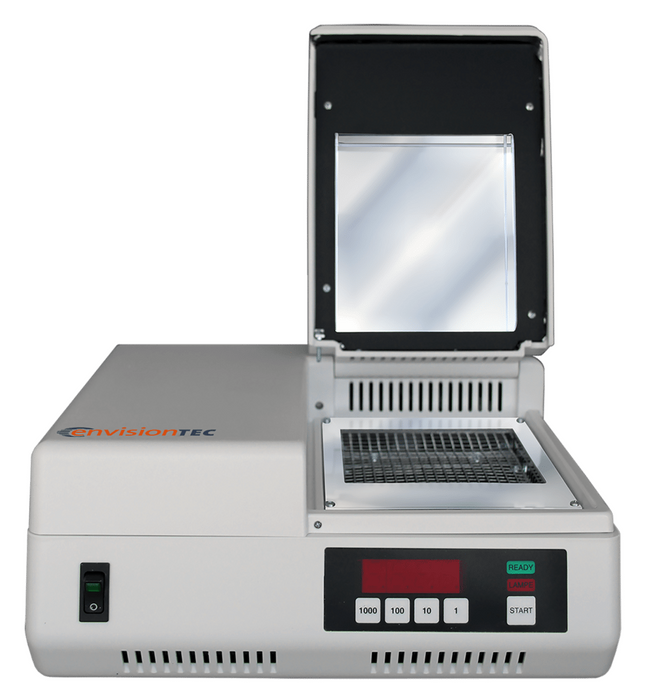

Otoflash Post Curing Light Pulsing Unit

$5,850.00

The Otoflash is a light polymerization chamber for the hardening/curing of light curing resins for jewelry, dental, and otoplastic applications.

Two photoflash lamps at the bottom of the curing chamber operate in a work mode with a frequency of 10 flashes per second. The photo-flash lamps produce a very intensive light radiation in a spectrum from 300 up to 700 nm.

Because of this intensive light radiation, a better hardening of the materials is possible, resulting in materials with good physical values and reduced content of residual monomer versus using other lamp types with a different light emitting spectrum.

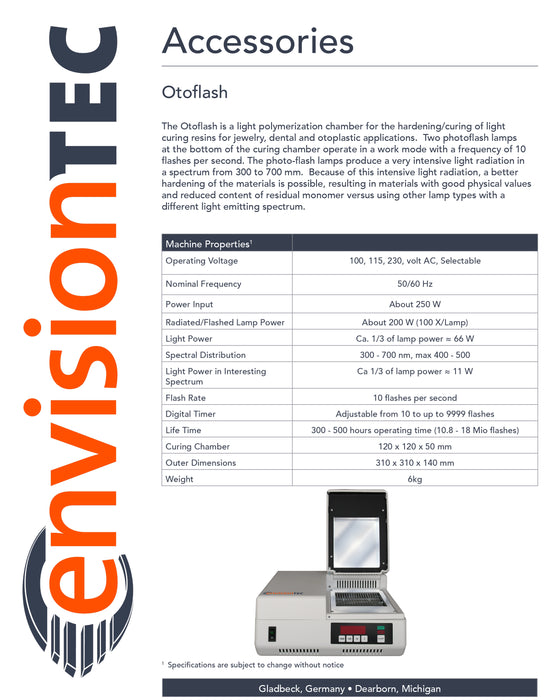

MACHINE PROPERTIES

  • Inner Chamber Dimensions
  • 120 x 120 x 50 mm (4.72 x 4.72 x 1.97 in.)
  • Curing Chamber Access
  • Top Loading
  • Operating Voltage
  • 100,115,230,volt AC, Selectable
  • Nominal Frequency
  • 50/60 Hz
  • Power Input
  • About 250 W
  • Radiated/Flashed Lamp Power
  • About 200 W (100 X/Lamp)
  • Light Power
  • Ca. 1/3 of lamp power ≈ 66 W
  • Spectral Distribution
  • 300-700 nm, max 400-500
  • Light Power in Interesting Spectrum
  • Ca 1/3 of lamp power ≈ 11 W
  • Flash Rate
  • 10 flashes per second
  • Digital Timer
  • Adjustable from 1 up to 9999 flashes
  • Life Time
  • 300-500 hours operating time (10.8 – 18 Mio flashes)
  • Outer Dimensions
  • 310 x 310 x 140 mm (12.2 x 12.2 x 5.51 in.)
  • Weight
  • 6kg (13.23 lbs)



APPLICATIONS

  • Digital Dentures
  • Occlusal Guards and Splints
