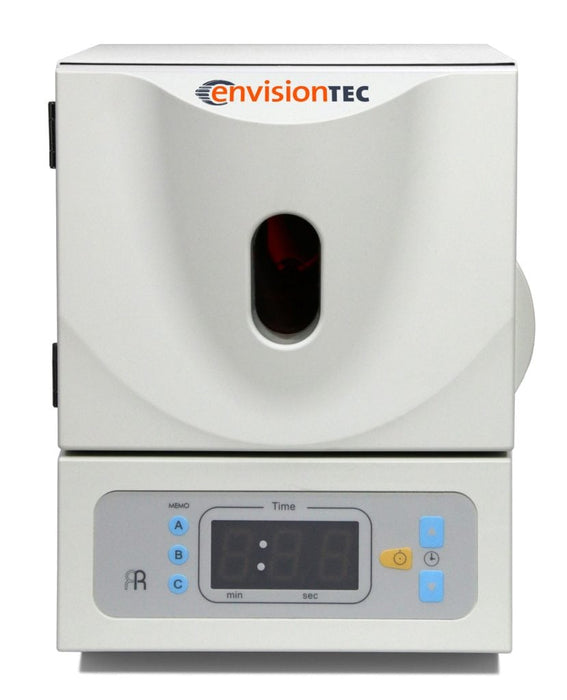

PCA 100 (Parts Curing Apparatus)

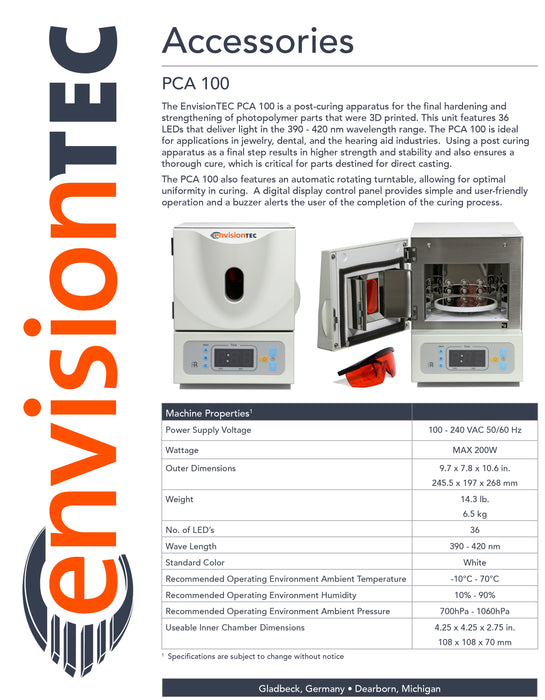

The EnvisionTEC PCA 100 is a post-curing apparatus for the final hardening and strengthening of photopolymer parts that were 3D printed. This unit features 36 LEDs that deliver light in the 390 – 420 nm wavelength range.

The PCA 100 is ideal for applications in jewelry, dental, and the hearing aid industries. Using a post curing apparatus as a final step results in higher strength and stability and also ensures a thorough cure, which is critical for parts destined for direct casting.

The PCA 100 also features an automatic rotating turntable, allowing for optimal uniformity in curing. A digital display control panel provides simple and user-friendly operation and a buzzer alerts the user of the completion of the curing process.



  • Power Supply Voltage
  • 100 – 240 VAC 50/60 Hz
  • Wattage
  • MAX 200W
  • Outer Dimensions
  • 9.7 x 7.8 x 10.6 in. (245.5 x 197 x 268 mm)
  • Weight
  • 14.3 lb. (6.5 kg)
  • No. of LED's
  • 36
  • Wave Length
  • 390 – 420 nm
  • Standard Color
  • White
  • Useable Inner Chamber Dimensions
